PDC15-480-0206-2

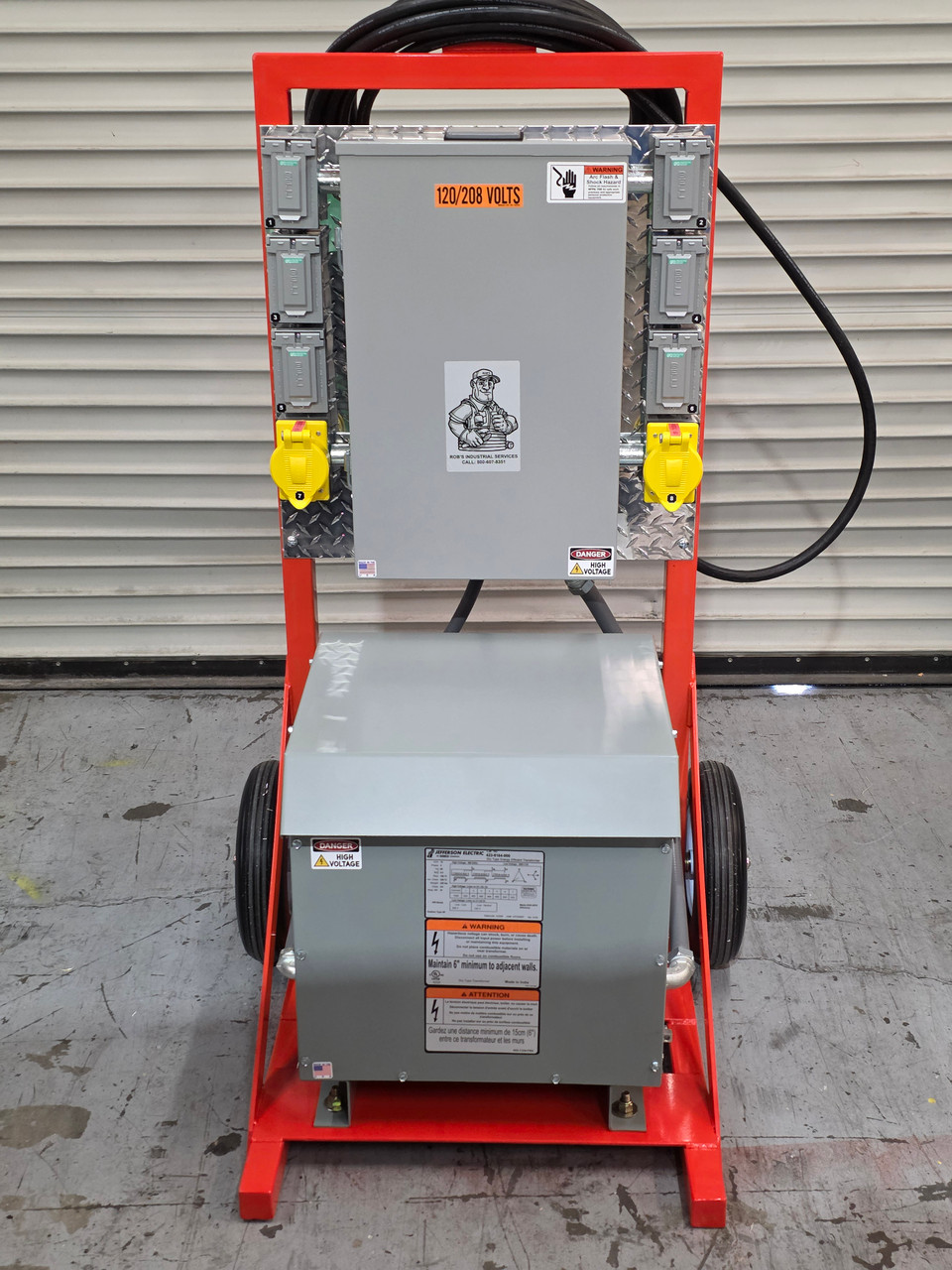

• POWER DISTRIBUTION CART:NEMA 3R
• LINE SIDE: PRIMARY
• 60A 600V DISCONNECT (60A FUSES) FEEDING
• 15KVA VENTILATED XFMR, 480V 3PH TO 120/208V 3PH.
• LOAD SIDE: SECONDARY
• 6EA - 1P 20A 120V CIRCUIT BREAKERS FEEDING 6EA- GFCI DUPLEX REC'S.
• 2EA - 2P 50A 250V 1PH CB, FEEDING 2EA 50A 125/250V REC (CS6369) SPIDER BOX RECEPTACLES
• ALL RECEPTACLES HAVE WEATHERPROOF COVERS.
• ALL MOUNTED ON A HEAVY DUTY 2 WHEEL CART W/ 5K LIFTING EYE
• AND HEAVY DUTY NO FLAT WHEELS. POWDER COAT ORANGE
• POWER CORD 50 FT 8/4 SOOW w/ BARE END.
