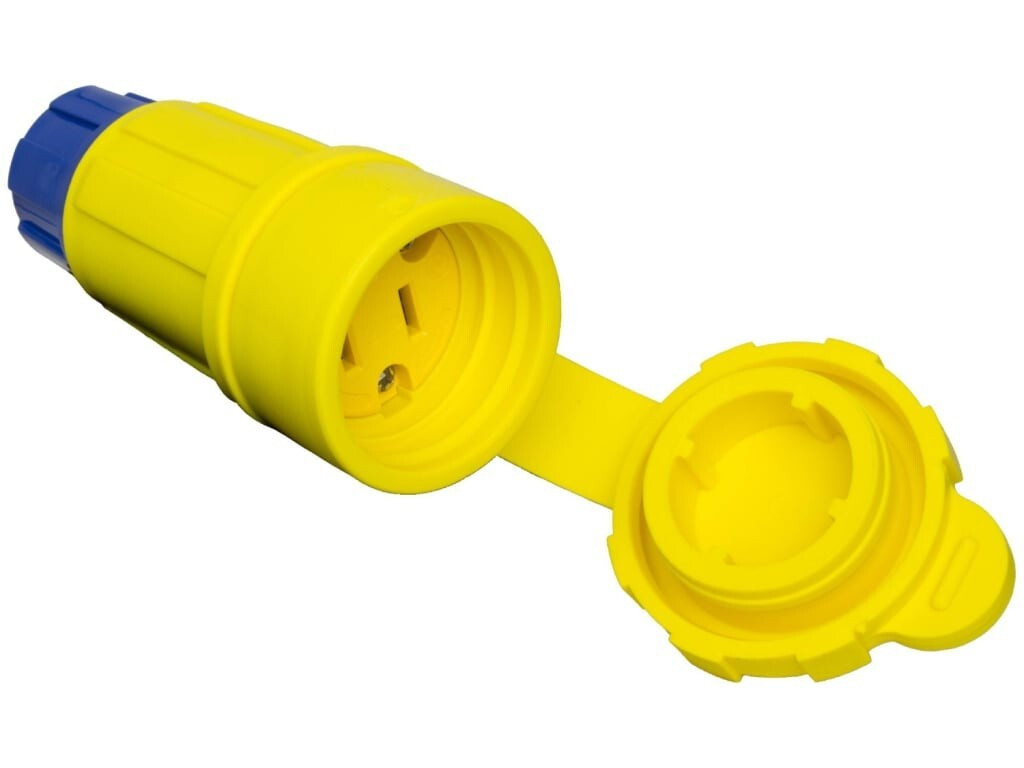

Ericson 1610-CW6P 15A 125V Straight Blade Connector
$30.11
Ericson 1610-CW6P 15A 125V Straight Blade Connector
$30.11
| This product is available for pre-order only |
)
Product Description
1610-CW6P
Details
| Item | Straight Blade Connector |
| NEMA Receptacle Configuration | 5-15R |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Housing Color | Yellow |
| Cap Type | Flip-Up Cap |
| IP Rating | IP69K |
| Standards | CSA Certified to CSA C22.2 No.42, File 31943, UL Listed to ANSI/UL 498, File E17740 |
| Resistance Properties | Watertight |
| Case Qty | 50 |
| cETL | cETL Listed to CSA C22.2 No. 42 |
| Blade Style | Straight |
| NSF | NSF/ANSI/3-A 14159-1 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Environmental Rating | Watertight (IP69K) |
| ETL | ETL Listed to ANSI/UL 498 |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Device Type | Connector |
| Poles / Wires | 2P/3W |
| Sub Brand / Trademark | Perma-Tite |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
